产品中心 储能电源 EV-120A

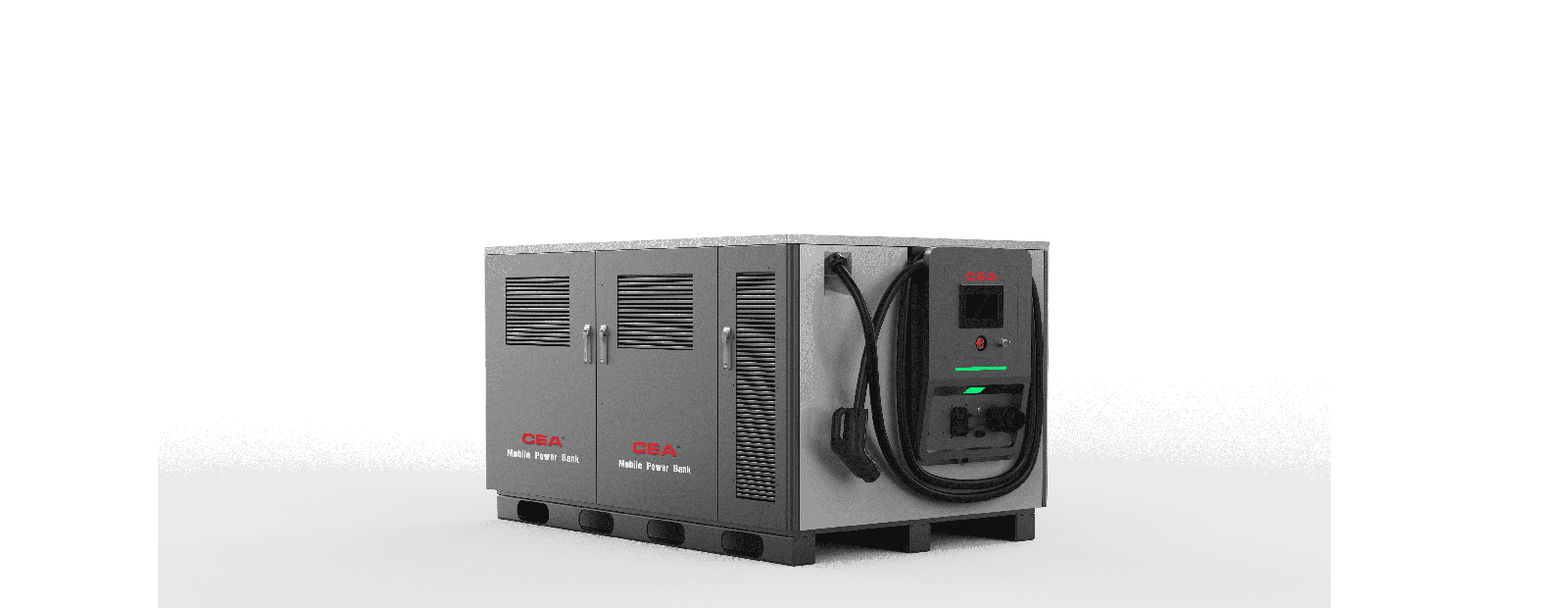

EV-120A
EV-120A
大容量可移动充电；能给汽车充电；可应急救援供电；可 DC快充

用户手册

产品视频

询价

01
产品介绍
Product Introduction
EV-120A
  • 可移动充电
    可移动充电
  • 能给汽车充电
    能给汽车充电
  • 应急救援供电
    应急救援供电
  • 可 DC快充
    可 DC快充
02
参数介绍
Parameter Introduction
Product name EV-120A-161DM
Charging voltage DC/AC380V
Charging standard CCS1/CCS2/CHAdeMO/GBT//Tesla
Type of Battery LiFePO4
Nominal capacity 161KWh
Charge rate 0.5C
Discharge rate 1C
Battery voltage 512V
Depth of discharge 80%
Charge Cycles 6000
Cell type LiFePO4
Pack voltage 512V
Rated voltage 3.2V
Rated frequency 315A
Cooling method LIQUID COOLANT
IP level IP54
Isolation method DIRECT INSULATION
Rated Power 120 KW
Output Voltage DC200V-750V
Output Current 0-250A
Charging mode Automatic full fixed power fixed amount fixed time
Safety Protections Overvoltage Overcurrent Low-voltage ESD Lighting Overcharge Overload Fire Overheat Waterproof Leakage and Chip Protection
Payment method OCPP
Networking method 4G Module
Networking protocol OCPP Network
Charging GUN CCS1/CCS2/CHAdeMO/GBT//Tesla
Cable Length 7 Meters(Customizable)
HMI 7-inch touch screen (charging station)
Language English(Customizable)
Dimension L*W*H/mm 2000*1230*1087
Weight/kG 1500KG
Operating temperature/°C -10°C-60°C
Altitude/m 2000m
Noise/dB ≤60dB
Relative humidity/RH 5%～95% RH Non-condensing
Certificate CE
×
