产品中心 储能电源 EV60A

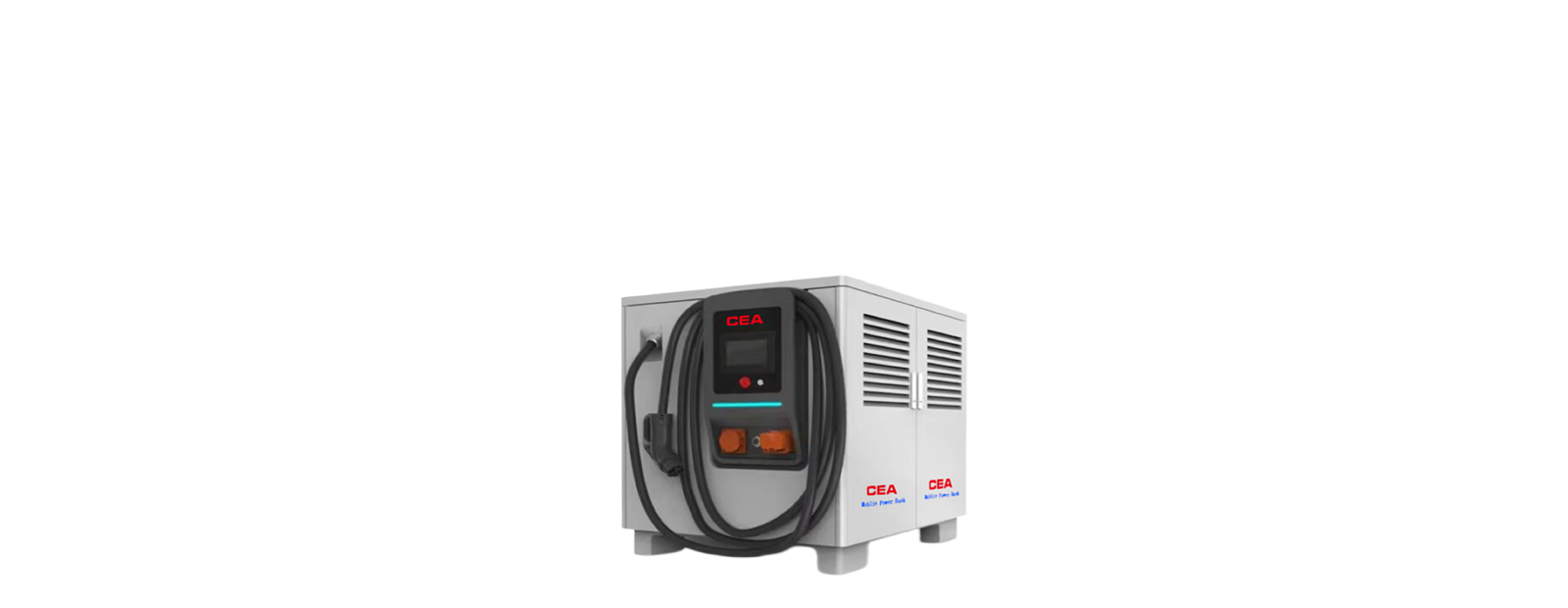

EV60A
EV60A
大容量可移动充电；能给汽车充电；可应急救援供电；可 DC快充

用户手册

产品视频

询价

01
产品介绍
Product Introduction
EV60A
  • 可移动充电
    可移动充电
  • 能给汽车充电
    能给汽车充电
  • 应急救援供电
    应急救援供电
  • 可 DC快充
    可 DC快充
02
参数介绍
Parameter Introduction
Product name EV-60A-65D
Charging voltage DC CHARGER/AC380V
Charging standard CCS1/CCS2/CHAdeMO/GBT//Tesla
Type of Battery LiFePO4
Nominal capacity 65KWh
Charge rate 0.5C
Discharge rate 1C
Battery voltage 614.4V
Depth of discharge 80%
Charge Cycles 6000
Cell type LiFePO4
Pack voltage 614.4V
Rated voltage 3.2V
Rated current 105A
Cooling method LIQUID COOLANT
IP level IP54
Isolation method Diret Detection
Rated Power 60 KW
Output Voltage DC200V-750V
Output Current 0-150A
Charging mode 60KW DC Fast Charging
Safety Protections Overvoltage、Overcurrent、Low-voltage、ESD、Lighting、Overcharge、
　 Overload、Fire、Overheat、Waterproof、Leakage and Chip Protection
Communication Protocol OCPP
Networking method 4G Module
Networking protocol OCPP Network
Charging GUN CCS1/CCS2/CHAdeMO/GBT//Tesla
Cable Length 7 Meters(Customizable)
HMI 7-inch touch screen (charging station)
Language English(Customizable)
Dimension L*W*H/mm 1500*965*1050
Weight/kG 900KG
Operating temperature/°C -10°C-60°C
Altitude/m 2000m
Noise/dB ≤60dB
Relative humidity/RH 5%～95%RH non-condensing
Certificate CE
×
